Compact Series

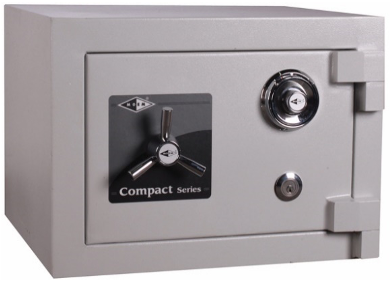

Compact Series Model - MS100

  • External Size: H385mm x W533mm x D457mm
  • Internal Size: H245mm x W393mm x D270mm
  • Weight: 170kgs Approx.
  • Fire Class: 30 minutes JIS 1037:1989
  • Origin: Malaysia
  • Burglar Protection: Grade 1 EN 1443-1
  • Drawer: NA
  • Shelf: 1
Locking: Key Lock / Combination Lock

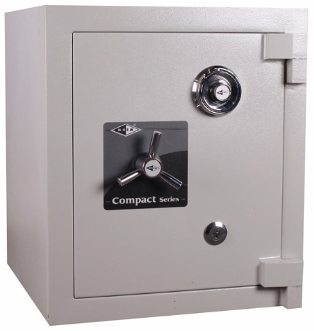

Compact Series Model - MS200

  • External Size: H584mm x W508mm x D533mm
  • Internal Size: H445mm x W368mm x D360mm
  • Weight: 250kgs Approx.
  • Fire Class: 30 minutes JIS 1037:1989
  • Origin: Malaysia
  • Burglar Protection: Grade 1 EN 1443-1
  • Drawer: 1
  • Shelf: 1
Locking: Key Lock / Combination Lock

Compact Series Model - MS300

  • External Size: H685mm x W508mm x D533mm
  • Internal Size: H545mm x W368mm x D360mm
  • Weight: 285 kgs Approx.
  • Fire Class: 30 minutes JIS 1037:1989
  • Origin: Malaysia
  • Burglar Protection: Grade 1 EN 1443-1
  • Drawer: 1
  • Shelf: 1
Locking: Key Lock / Combination Lock

Compact Series MS300T (Drop Safe)

  • External Size: H584mm x W508mm x D533mm
  • Internal Size: H445mm x W368mm x D360mm
  • Weight: 250kgs Approx.
  • Fire Class: 30 minutes JIS 1037:1989
  • Origin: Malaysia
  • Burglar Protection: Grade 1 EN 1443-1
  • Drawer: 1
  • Shelf: 1
Locking: Key Lock / Combination Lock

Avanguard Series

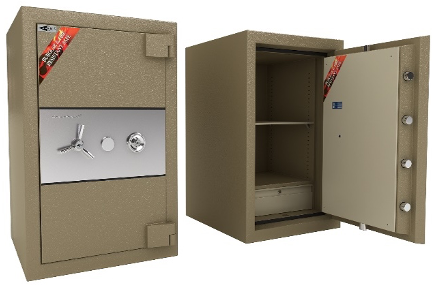

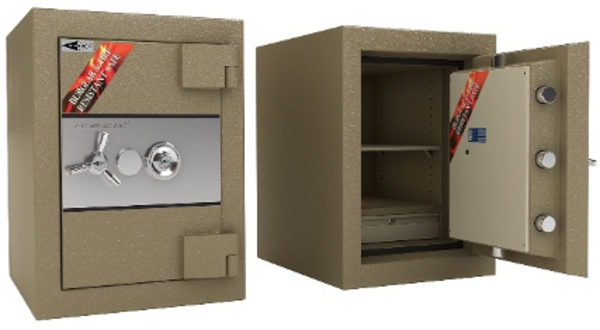

AvanGuard Series Model - AV1

  • External Size: H710mm x W648mm x D680mm
  • Internal Size: H500mm x W438mm x D410mm
  • Weight: 603 kgs Approx.
  • Fire Class: 60 minutes Certified NT Fire 017 60 Paper
  • Origin: Malaysia
  • Burglar Protection: Grade III EN 1443-1
  • Drawer: 1
  • Shelf: 1
Locking: Key Lock / Combination Lock

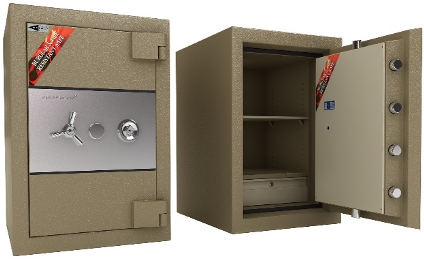

AvanGuard Series Model - AV2

  • External Size: H900mm x W648mm x D724mm
  • Internal Size: H698mm x W438mm x D454mm
  • Weight: 783 kgs Approx.
  • Fire Class: 60 minutes Certified NT Fire 017 60 Paper
  • Origin: Malaysia
  • Burglar Protection: Grade III EN 1443-1
  • Drawer: 1
  • Shelf: 1
Locking: Key Lock / Combination Lock

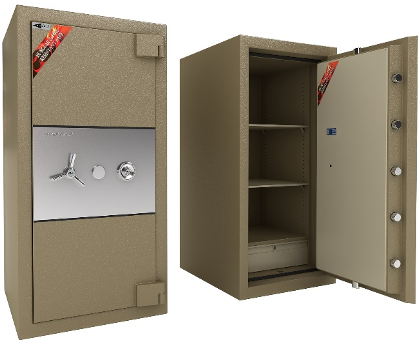

AvanGuard Series Model - AV3

  • External Size: H1105mm x W724mm x D775mm
  • Internal Size: H895mm x W514mm x D505mm
  • Weight: 1063 kgs Approx.
  • Fire Class: 60 minutes Certified NT Fire 017 60 Paper
  • Origin: Malaysia
  • Burglar Protection: Grade III EN 1443-1
  • Drawer: 1
  • Shelf: 1
Locking: Key Lock / Combination Lock

AvanGuard Series Model - AV4

  • External Size: H1422mm x W762mm x D813mm
  • Internal Size: H1212mm x W552mm x D543mm
  • Weight: 1408 kgs Approx.
  • Fire Class: 60 minutes Certified NT Fire 017 60 Paper
  • Origin: Malaysia
  • Burglar Protection: Grade III EN 1443-1
  • Drawer: 1
  • Shelf: 2
Locking: Key Lock / Combination Lock

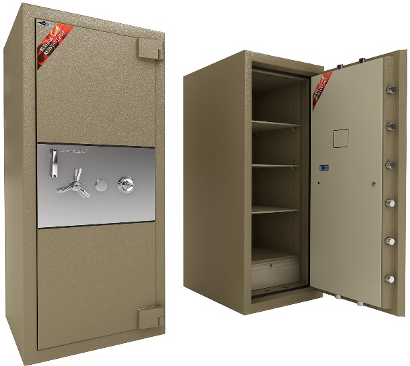

AvanGuard Series Model - AV5 (GT5)

  • External Size: H1702mm x W762mm x D813mm
  • Internal Size: H1490mm x W550mm x D535mm
  • Weight: 1691 kgs Approx.
  • Fire Class: 60 minutes Certified NT Fire 017 60 Paper
  • Origin: Malaysia
  • Burglar Protection: Grade III EN 1443-1
  • Drawer: 1
  • Shelf: 3
Locking: Key Lock / Combination Lock

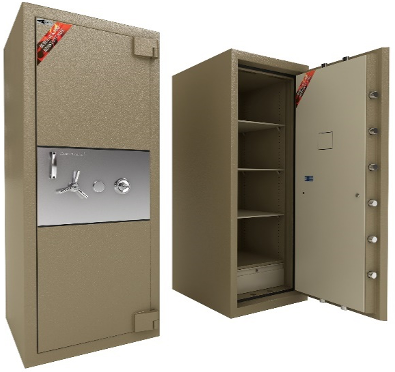

AvanGuard Series Model - AV6 (GT6)

  • External Size: H1892mm x W762mm x D813mm
  • Internal Size: H1490mm x W550mm x D535mm
  • Weight: 1794 kgs Approx.
  • Fire Class: 60 minutes Certified NT Fire 017 60 Paper
  • Origin: Malaysia
  • Burglar Protection: Grade III EN 1443-1
  • Drawer: 1
  • Shelf: 3
Locking: Key Lock / Combination Lock

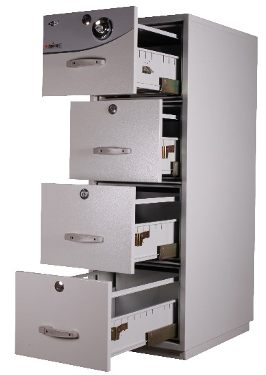

Fire Resistant Filling Cabinet - FRC4

  • External Size: H1550mm x W530mm x D770mm
  • Internal Size: H292mm x W386mm x D635mm
  • Weight: 360 kgs Approx.
  • Fire Class: 60 minutes Certified NT Fire 017 60 Paper
  • Origin: Malaysia
  • Drawer: 4
  • Shelf: N/A
Locking: Dual Key Lock / Combination Lock (optional)

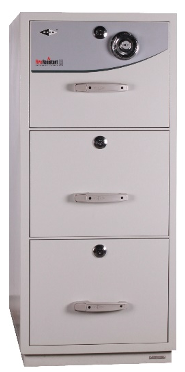

Fire Resistant Filling Cabinet - FRC3

  • External Size: H1188mm x W530mm x D770mm
  • Internal Size: H292mm x W386mm x D635mm
  • Weight: 260 kgs Approx.
  • Fire Class: 60 minutes Certified NT Fire 017 60 Paper
  • Origin: Malaysia
  • Drawer: 3
  • Shelf: N/A
Locking: Dual Key Lock / Combination Lock (optional)

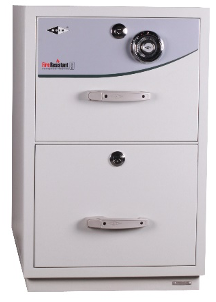

Fire Resistant Filling Cabinet - FRC2

  • External Size: H826mm x W530mm x D770mm
  • Internal Size: H292mm x W386mm x D635mm
  • Weight: 192 kgs Approx.
  • Fire Class: 60 minutes Certified NT Fire 017 60 Paper
  • Origin: Malaysia
  • Drawer: 2
  • Shelf: N/A
Locking: Dual Key Lock / Combination Lock (optional)

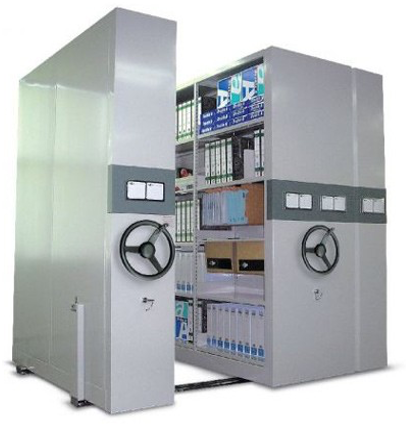

Mobile Filling System

  • Standard Height: 2260mm
  • Standard Width: 979mm
  • Standard Depth: 770mm (double bay), 400mm (single bay).
  • Shelf: 870mm x 370x 29mmH
  • Aisle Space: 762 (minimum)
  • Origin: Malaysia
  • Loading Capacity: 90 per shelf
  • Loading Capacity: 380 per bay
  • Weight Empty: 70kg per bay
Locking: 1-unit central locking system

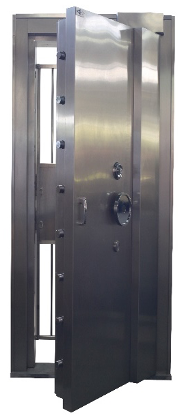

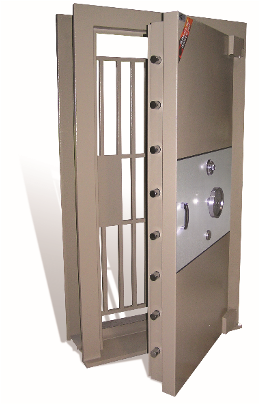

Vault Door MH90

  • Height: 2200mm
  • Width: 1100mm
  • Wall Thickness: 300mm
  • Overall Door Frame: H2123mm x W1168mm
  • Clear opening for Installation: H2095 x W1118 mm
  • Projection of Door at 180*: 283mm
  • Projection of Door at 90*: 1028mm
  • Overall width of Door at 180*: 2057mm
  • Fire Class: 120 minutes / SP Sweden
  • Weight: 1200 kgs.
  • Origin: Malaysia
Locking: Key Lock / Combination Lock
